Spec
|

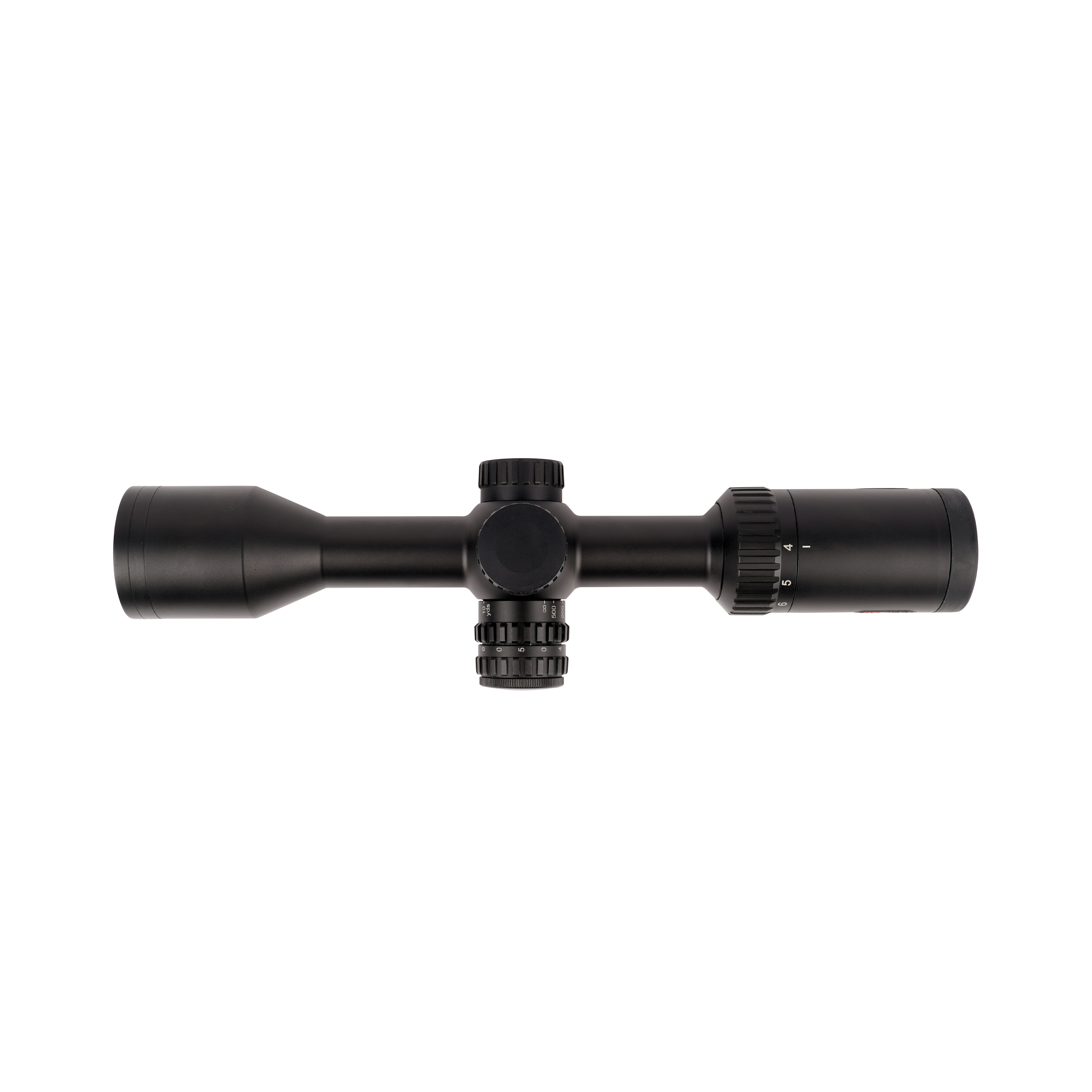

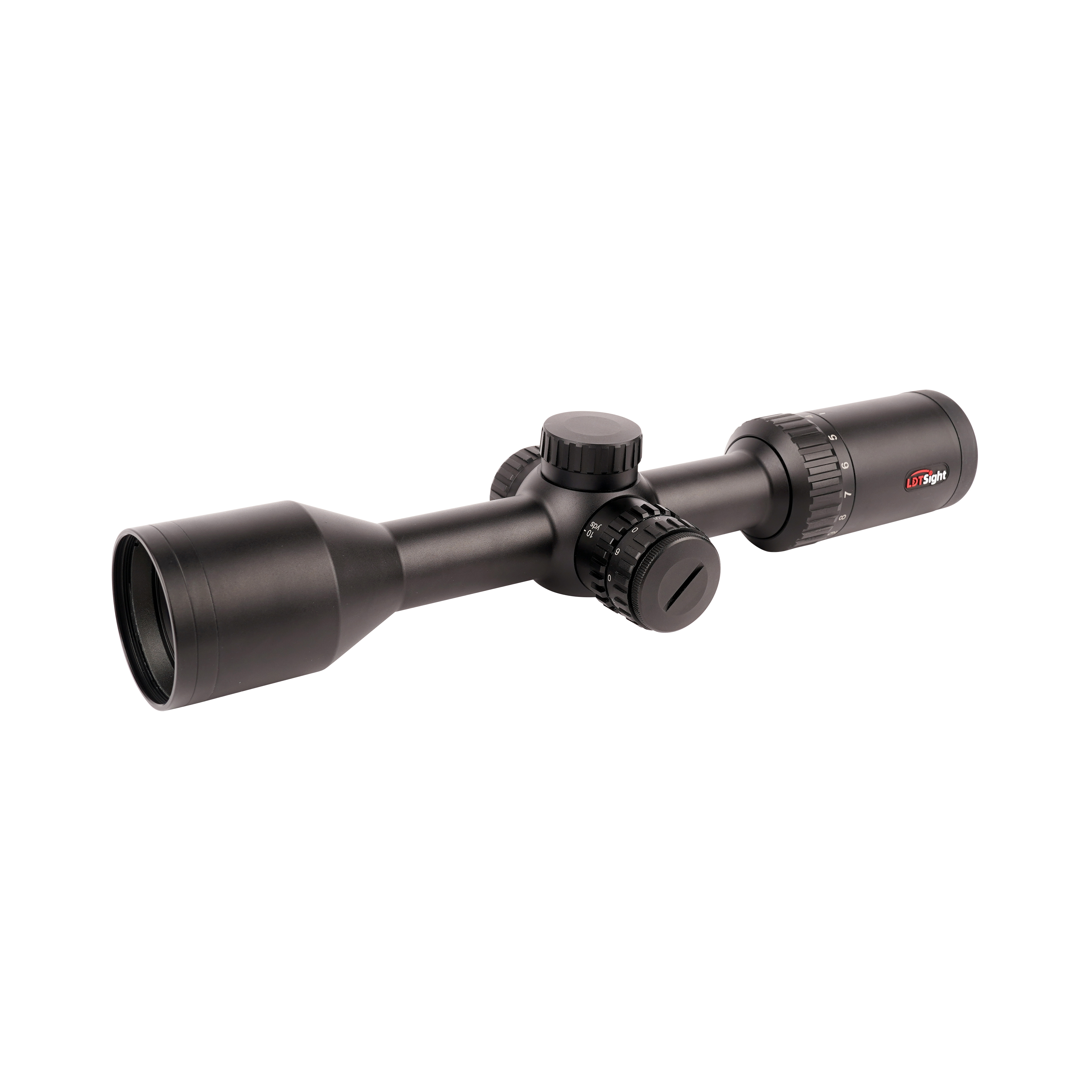

1" 4-12x40 IR SF
|
|
Body Tube
|
1 inch
|
|
Actual Magnification
|
Low
|
4 ± 5%
|
|
|
High
|
12 ± 5%
|
|
Diopter Range
|
+ 2 to -2 dpt
|
|
Exit Pupil
|
Low
|
10 mm
|
|
|
High
|
3.3 mm
|
|
Eye Relief
|
Low
|
90mm
|
|
|
High
|
85mm
|
|
Field of View (ft @ 100 yds)
|
Low
|
27
|
|
|
High
|
9
|
|
Min. Resolution
(Center 1/3 of FOV)
|
Low
|
7.3arc sec
|
|
|
High
|
6.14arc sec
|
|
Min. Elevation Adjustment (from
optical center)
|
30 MOA
|
|
Min. Windage Adjustment
(from optical center)
|
30 MOA
|
|
W/E Adj. Click Value
|
0.25 MOA
|
|
Max. W/E Adjustment Backlash
|
1 Click
|
|
Max. Point of Impact Shift
|
0.75 MOA
|
|
Max. Parallax @100 Yard
|
Low
|
1 MOA
|
|
|
Intermediate
|
1 MOA
|
|
|
High
|
± 10% of the Stated Value
|
|
Max. Reticle Jump
|
0.75 MOA
|
|
Max. Reticle Tracking
|
0.75 MOA
|
|
Max. Reticle Cant
|
± 1 Degree
|
|
Magnification Ring Rotation (Magnification Increasing)
|
Clockwise
|
|
Battery Type
|
CR2032
|
|
Illumination Settings
|
6
|
|
Parallax Adjustment
|
Side, 10 yds ~ ∞
|
