Spec
|

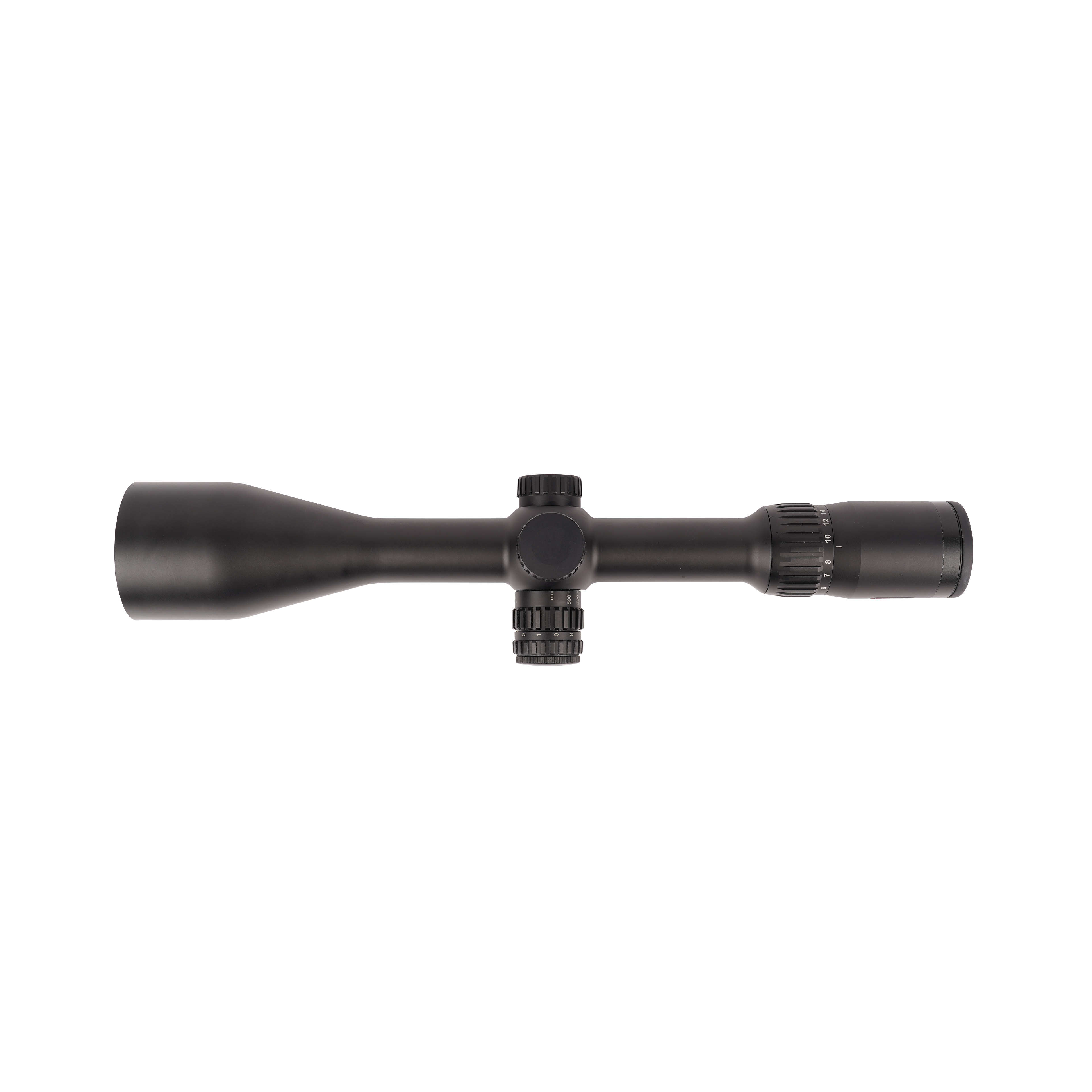

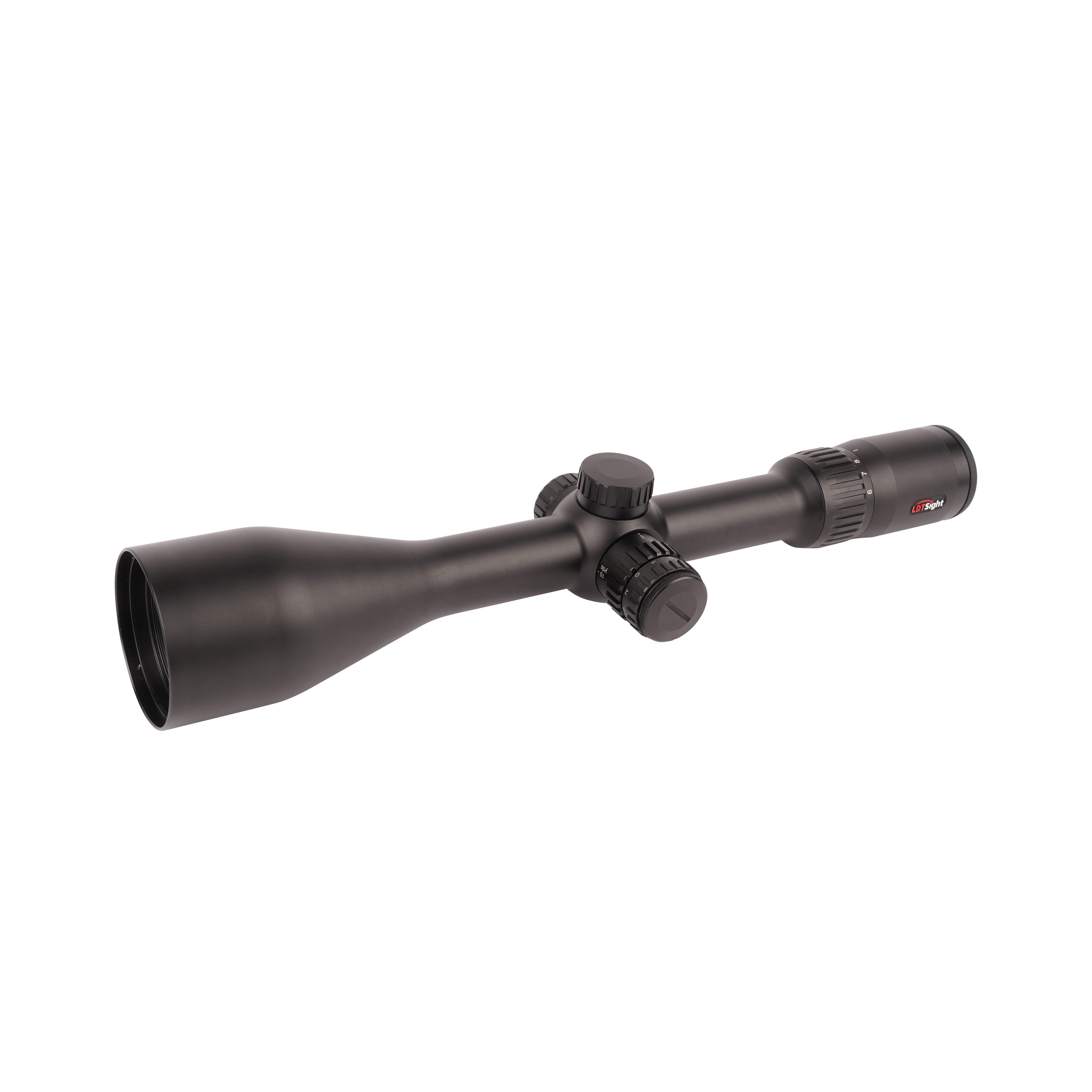

30mm 6-24x56IR SF WA
|
|
Body Tube
|
30mm
|
|
Actual Magnification
|
Low
|
6 ± 5%
|
|
|
High
|
24 ± 5%
|
|
Diopter Range
|
+ 2 to -2 dpt
|
|
Exit Pupil
|
Low
|
9.6 mm
|
|
|
High
|
2.9 mm
|
|
Eye Relief
|
Low
|
3.3 inch / 84 mm
|
|
|
High
|
3.6 inch / 91 mm
|
|
Field of View (ft @ 100 yds)
|
Low
|
17
|
|
|
High
|
4.9
|
|
Min. Resolution
(Center 1/3 of FOV)
|
Low
|
3.54 arc sec
|
|
|
High
|
2.49 arc sec
|
|
Min. Elevation Adjustment (from
optical center)
|
25 MOA
|
|
Min. Windage Adjustment
(from optical center)
|
25 MOA
|
|
W/E Adj. Click Value
|
1 cm @ 100m ± 5%
|
|
Max. W/E Adjustment Backlash
|
1 Click
|
|
Max. Point of Impact Shift
|
1 MOA
|
|
Max. Parallax @100 Yard
|
Low
|
0.5 MOA
|
|
|
Intermediate
|
0.5 MOA
|
|
|
High
|
0.5 MOA
|
|
Max. Reticle Jump
|
0.5 MOA
|
|
Max. Reticle Tracking
|
1 MOA
|
|
Max. Reticle Cant
|
± 1 Degree
|
|
Magnification Ring Rotation (Magnification Increasing)
|
Counter-clockwise
|
|
Battery Type
|
CR2032
|
|
Illumination Settings
|
6
|
|
Parallax Adjustment
|
Side
|
