Spec
|

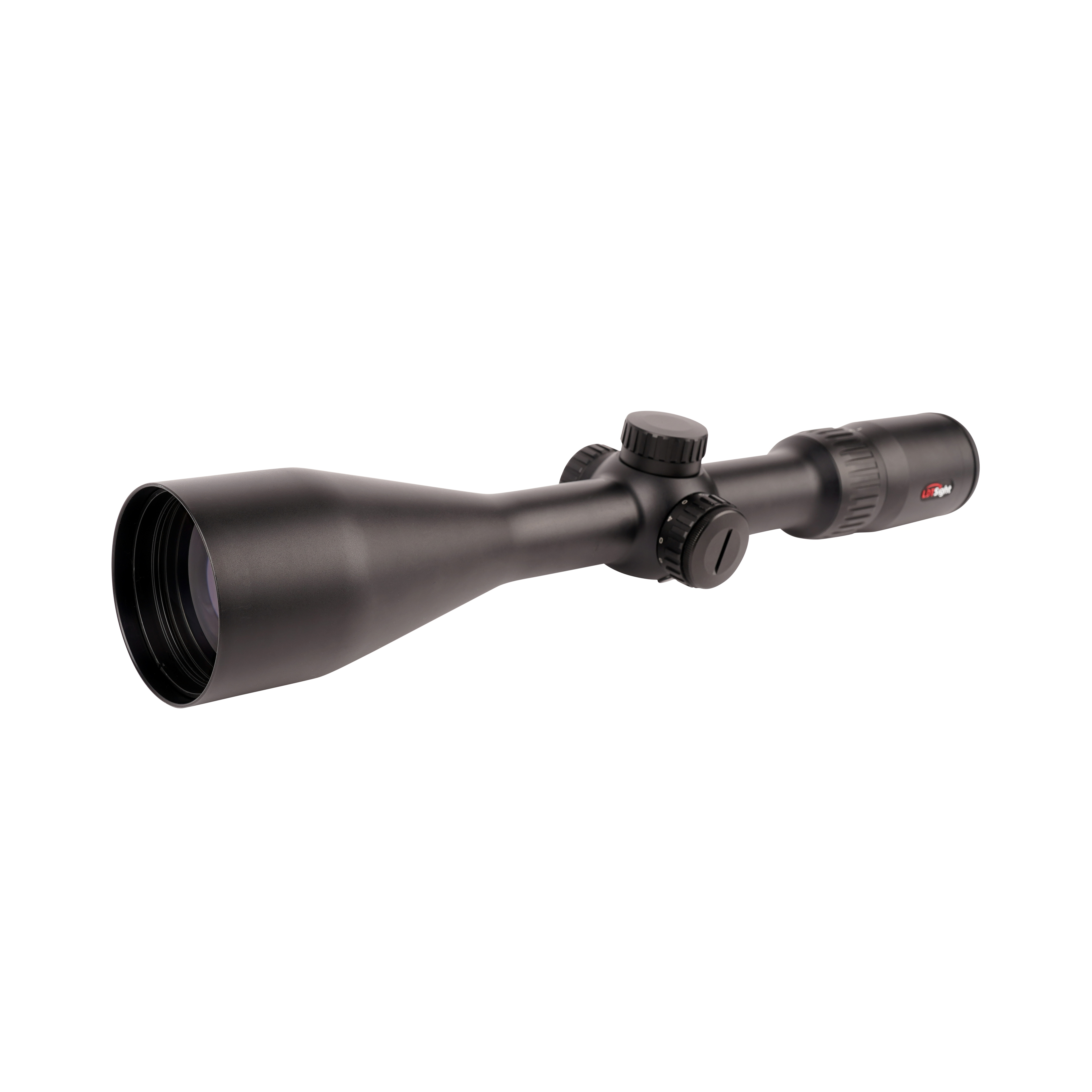

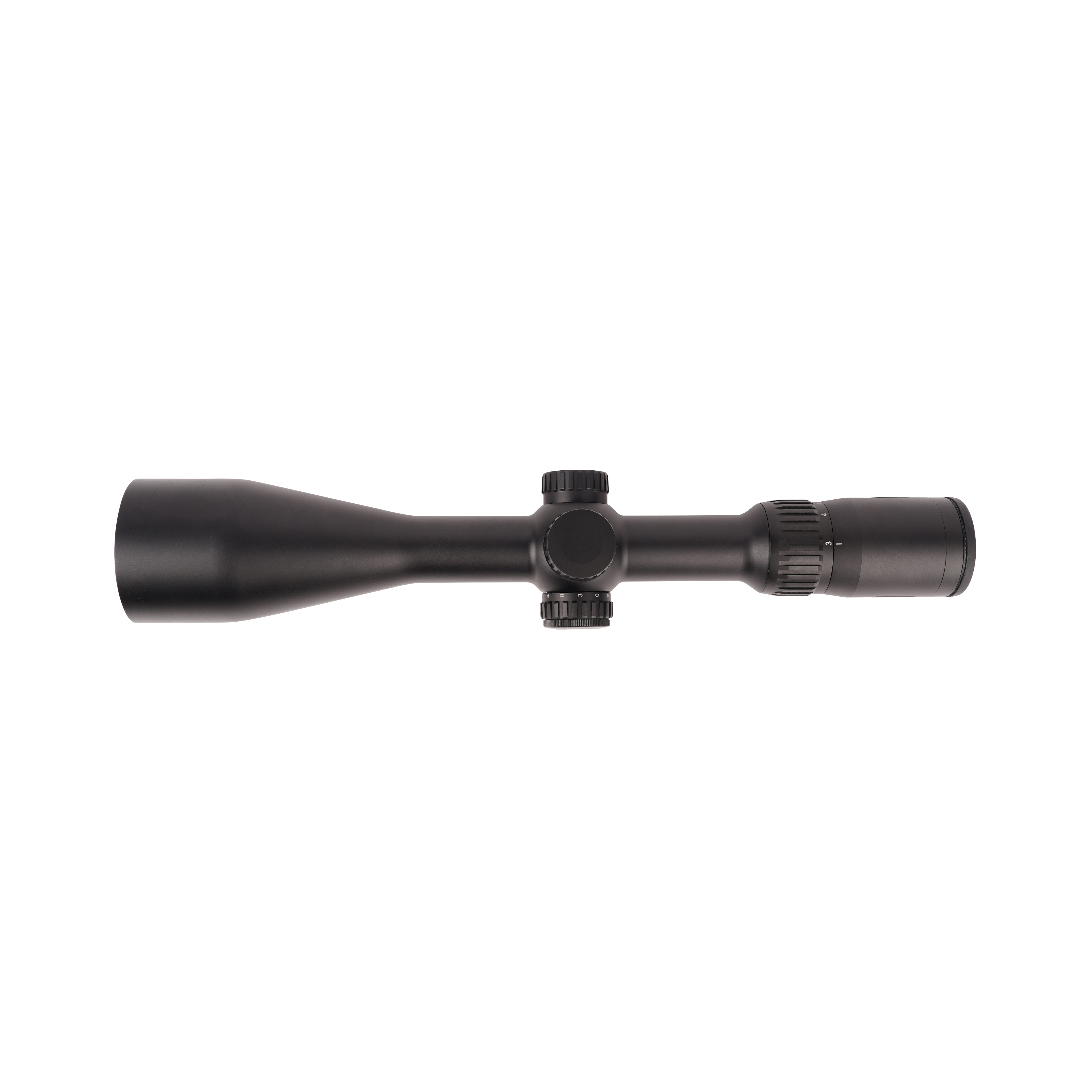

30mm 3-12x56IR WA
|
|
Body Tube
|
30mm
|
|
Actual Magnification
|
Low
|
3 ± 5%
|
|
|
High
|
12 ± 5%
|
|
Diopter Range
|
+ 2 to -2 dpt
|
|
Exit Pupil
|
Low
|
13.8 mm
|
|
|
High
|
5.7 mm
|
|
Eye Relief
|
Low
|
4.5 inch / 114 mm
|
|
|
High
|
4.3 inch / 109 mm
|
|
Field of View (ft @ 100 yds)
|
Low
|
42.1
|
|
|
High
|
10.3
|
|
Min. Resolution
(Center 1/3 of FOV)
|
Low
|
7.05 arc sec
|
|
|
High
|
3.96 arc sec
|
|
Min. Elevation Adjustment (from
optical center)
|
45 MOA
|
|
Min. Windage Adjustment
(from optical center)
|
45 MOA
|
|
W/E Adj. Click Value
|
1 cm @ 100m ± 5%
|
|
Max. W/E Adjustment Backlash
|
1 Click
|
|
Max. Point of Impact Shift
|
1 MOA
|
|
Max. Parallax @100 Yard
|
Low
|
0.5 MOA
|
|
|
Intermediate
|
0.5 MOA
|
|
|
High
|
0.5 MOA
|
|
Max. Reticle Jump
|
0.5 MOA
|
|
Max. Reticle Tracking
|
1 MOA
|
|
Max. Reticle Cant
|
± 1 Degree
|
|
Magnification Ring Rotation (Magnification Increasing)
|
Counter-clockwise
|
|
Battery Type
|
CR2032
|
|
Illumination Settings
|
6
|
|
Parallax Adjustment
|
None
|
