Spec
|

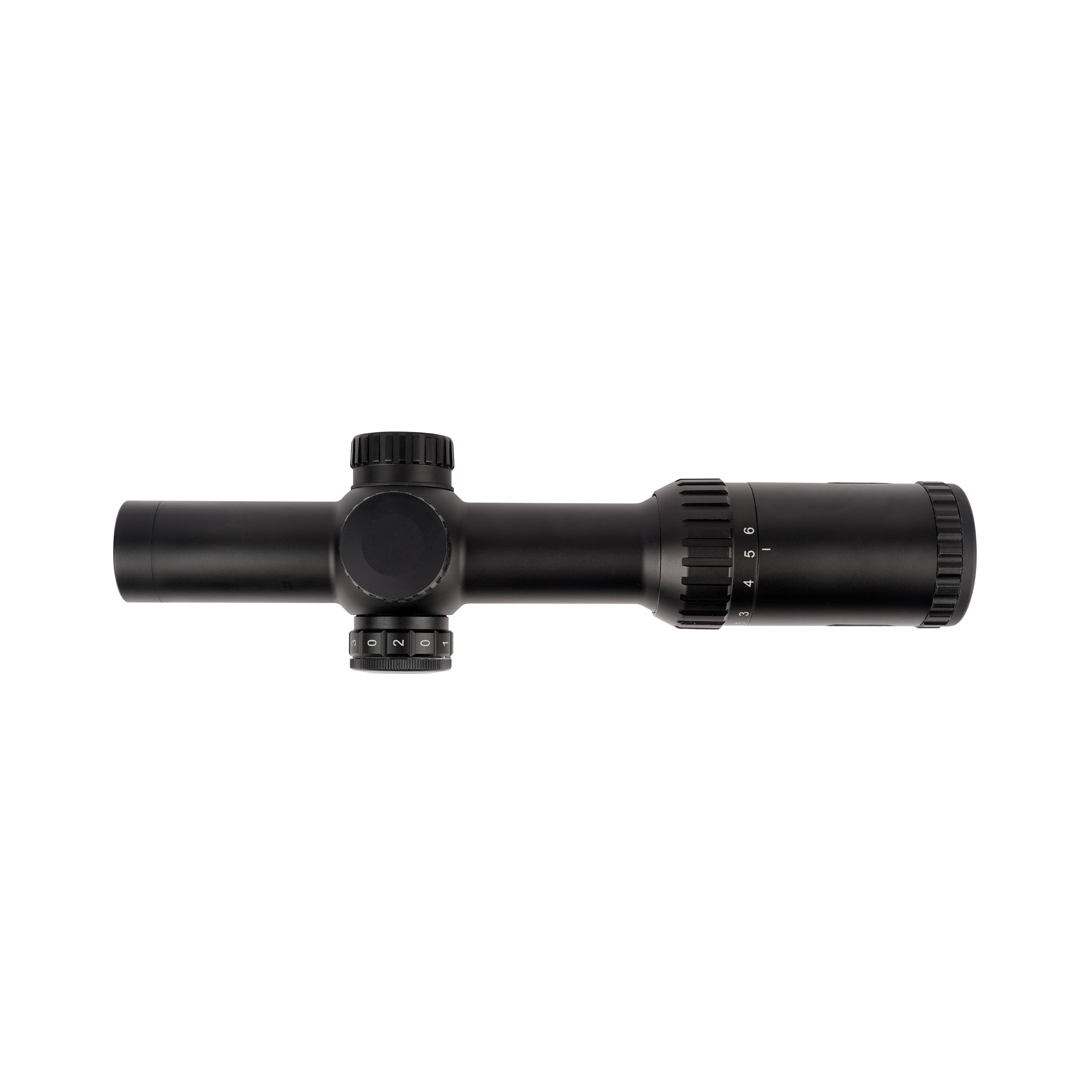

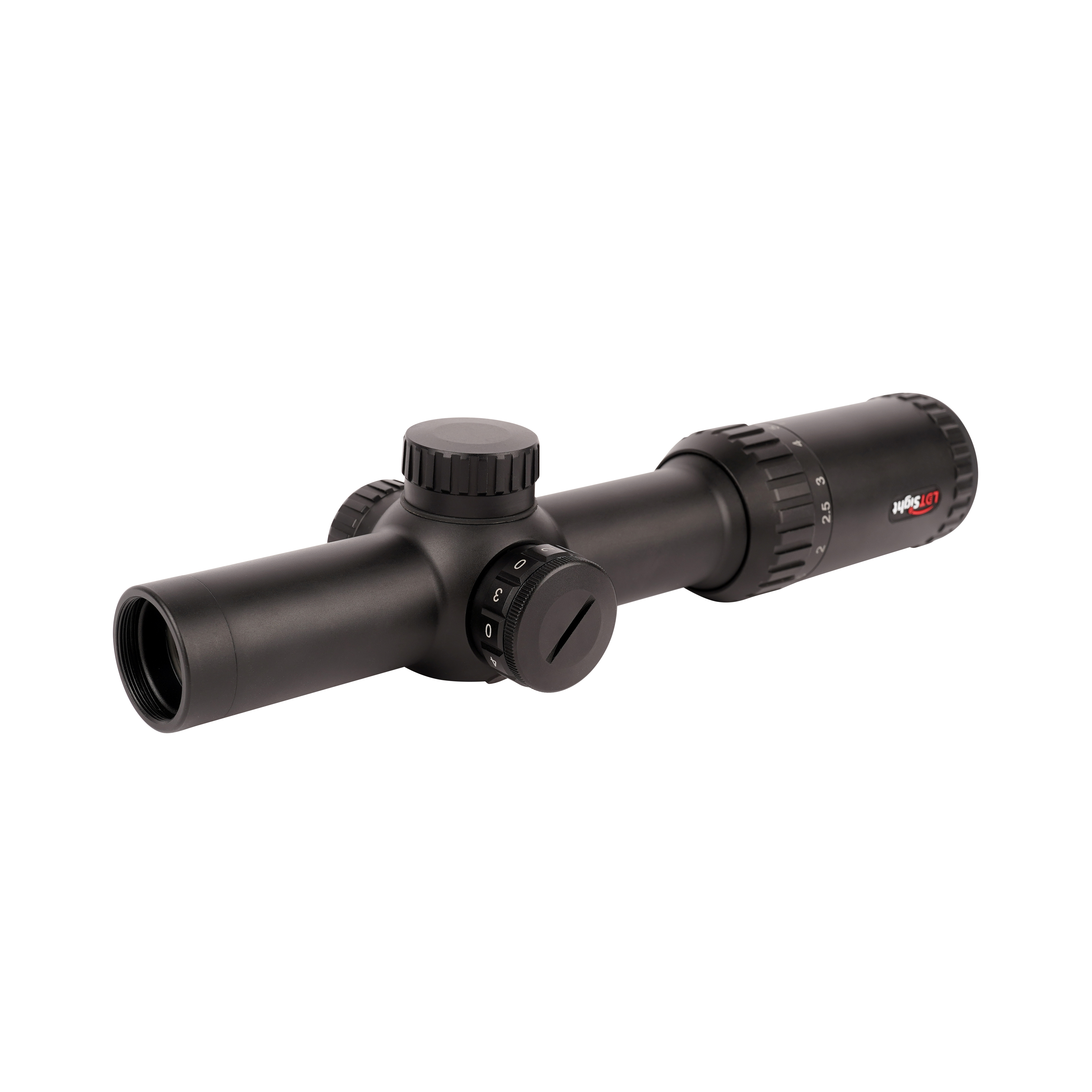

1-6x24IR SFP
|
|
Body Tube
|
30mm
|
|
Actual Magnification
|
Low
|
1 ± 5%
|
|
|
High
|
6 ± 5%
|
|
Diopter Range
|
+ 2 to -2 dpt
|
|
Exit Pupil
|
Low
|
11mm
|
|
|
High
|
4 mm
|
|
Eye Relief
|
Low
|
90mm
|
|
|
High
|
88mm
|
|
Field of View (ft @ 100 yds)
|
Low
|
105
|
|
|
High
|
18.3
|
|
Min. Resolution
(Center 1/3 of FOV)
|
Low
|
13.5arc sec
|
|
|
High
|
8.6arc sec
|
|
Min. Elevation Adjustment (from
optical center)
|
60 MOA
|
|
Min. Windage Adjustment
(from optical center)
|
60 MOA
|
|
W/E Adj. Click Value
|
0.5 MOA
|
|
Max. W/E Adjustment Backlash
|
1 Click
|
|
Max. Point of Impact Shift
|
1 MOA
|
|
Max. Parallax @100 Yard
|
Low
|
1 MOA
|
|
|
Intermediate
|
1 MOA
|
|
|
High
|
1 MOA
|
|
Max. Reticle Jump
|
1 MOA
|
|
Max. Reticle Tracking
|
1 MOA
|
|
Max. Reticle Cant
|
± 1 Degree
|
|
Magnification Ring Rotation (Magnification Increasing)
|
Counter-clockwise
|
|
Battery Type
|
CR2032
|
|
Illumination Settings
|
6
|
|
Parallax Adjustment
|
None
|
